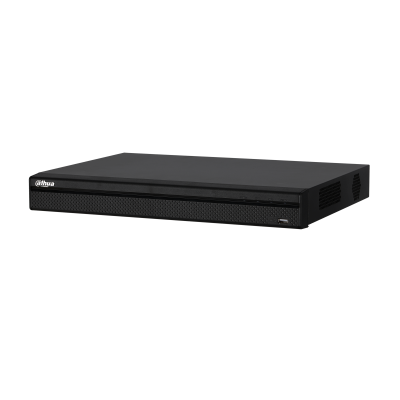

DHI-XVR4232AN-S2

32 Channel Penta-brid 720P Digital Video Recorder

> Embedded processor
> Support HDCVI/AHD/TVI/CVBS/IP video inputs
> Max 16 channels IP camera inputs
> Max 64Mbps Incoming Bandwidth
> Long transmission distance over coax cable
> Support 2 SATA HDD, up to 16TB
Категории: , , Метки: ,

Описание

System
Main Processor Embedded Processor
Operating System Embedded LINUX
Video and Audio
Analog Camera Input 32 Channel, BNC
HDCVI Camera 1080P@25/30fps, 720P@25/30fps
AHD Camera 1080P@25/30, 720P@25/30fps
TVI Camera 1080P@25/30, 720P@25/30fps
CVBS Camera PAL/NTSC
IP Camera Input 16 Channel, each channel up to 5MP
Audio In/Out 1/1, RCA
Two-way Talk Reuse audio in/out, RCA
Recording
Compression H.264
Resolution 1080N, 720P, 960H, D1, HD1, BCIF, CIF, QCIF
Record Rate Main stream: 1080N(1~12fps)/720P(1~15fps)/960H/D1/HD1/BCIF/CIF/QCIF (1~25/30fps)

Sub steram: CIF/QCIF(1~7fps)
Bit Rate 1Kbps ~ 6144Kbps Per Channel
Record Mode Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Record Interval 1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
Display
Interface 32CH:1 HDMI, 1 VGA, 1 TV
Resolution 1920×1080, 1280×1024, 1280×720, 1024×768
Multi-screen Display 32CH:1/4/8/9/16/25/36
OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Network
Interface 32CH:1 RJ-45 Port (1000M)
Network Function HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search (Support Dahua IP camera, DVR, NVS, etc.)
Max. User Access 128 users
Smart Phone iPhone, iPad, Android
Interoperability ONVIF 2.42, CGI Conformant
Video Detection and Alarm
Trigger Events Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video Detection Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis
Alarm input N/A
Relay Output N/A
Playback and Backup
Playback 1/4/9/16
Search Mode Time /Date, Alarm, MD and Exact Search (accurate to second)
Playback Function Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
Backup Mode USB Device/Network
Storage
Internal HDD 2 SATA Port, up to 8TB capacity
eSATA N/A
Auxiliary Interface
USB 32CH:1 USB 2.0 , 1 USB 3.0
RS232 N/A
RS485 1 Port, for PTZ Control
Electrical
Power Supply 32CH: DC12V/5A
Power Consumption 32CH: <20W (Without HDD)
Construction
Dimensions 1U, 375mm×287mm×53mm (14.8″ x 11.3″ x 2.1″)
Net Weight 2.35kg (5.2 lb) (without HDD)
Gross Weight 3.2kg (7.05lb)
Installation Desktop installation
Environmental
Operating Conditions -10°C ~ +55°C (+14°F ~ +131°F), 0~ 90% RH
Storage Conditions -20°C ~ +70°C (-4°F ~ +158°F) , 0~ 90% RH
Third-party Support
Third-party Support Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more
Certifications
Certifications FCC: Part 15 Subpart B
CE: CE-LVD: EN 60950-1/IEC 60950-1

CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024
UL: UL 60950-1
