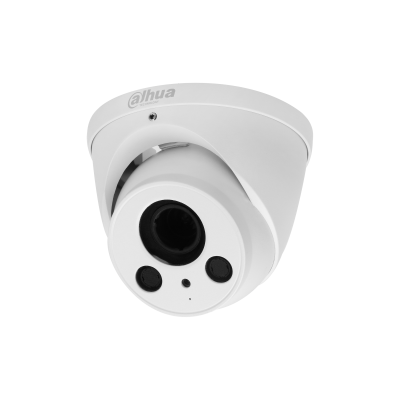

HAC-HDW2231RP-Z

2MP Starlight HDCVI IR Eyeball Camera

> Starlight, 120dB true WDR, 3DNR
> Max 30fps@1080P
> HD and SD output switchable
> 2.7-13.5mm motorized lens
> Max. IR length 60m, Smart IR
> IP67, DC12V

Описание

Camera
Image Sensor 1/2.8″ CMOS
Effective Pixels 1937(H)×1097(V), 2.1MP
Scanning System Progressive
Electronic Shutter Speed PAL: 1/4s~1/100000s

NTSC: 1/3s~1/100000s

Minimum Illumination 0.005Lux/F1.3, 30IRE, 0Lux IR on
S/N Ratio More than 65dB
IR Distance Up to 60m (197feet)
IR On/Off Control Auto / Manual
IR LEDs 2
Lens
Lens Type Motorized lens / Fixed iris
Mount Type Board-in
Focal Length 2.7-13.5mm
Max Aperture F1.3
Angle of View H: 102°~29°
Focus Control Auto / Manual
Close Focus Distance 200mm

7.87»

DORI Distance
Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.
Distance
Wide Tele
Detect 25px/m (8px/ft) 47m(154ft) 153m(502ft)
Observe 63px/m (19px/ft) 19m(62ft) 61m(200ft)
Recognize 125px/m (38px/ft) 9m(30ft) 31m(102ft)
Identify 250px/m (76px/ft) 5m(16ft) 15m(49ft)
Pan / Tilt / Rotation
Pan/Tilt/Rotation Pan: 0° ~ 360°

Tilt: 0° ~ 78°

Rotation: 0° ~ 360°

Video
Resolution 1080P (1920×1080)
Frame Rate 25/30fps@1080P, 25/30fps@720P
Video Output 1-channel BNC high definition video output / CVBS video output (Can switch)
Day/Night Auto (ICR) / Manual
OSD Menu Multi-language
BLC Mode BLC / HLC / WDR
WDR 120dB
Gain Control AGC
Noise Reduction 2D / 3D
White Balance Auto / Manual
Smart IR Auto / Manual
Certifications
Certifications CE (EN55032, EN55024, EN50130-4)

FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)

UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Interface
Audio Interface N/A
Eelectrical
Power Supply 12V DC ±25%
Power Consumption Max 7.2W (12V DC, IR on)
Environmental
Operating Conditions -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH

* Start up should be done at above -40°C (-40°F)

Storage Conditions -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH
Ingress Protection & Vandal Resistance IP67
Construction
Casing Aluminium
Dimensions Φ122mm×104.9mm (Φ4.8″×4.13″)
Net Weight 0.59kg (1.30lb)
Gross Weight 0.74kg (1.63lb)
