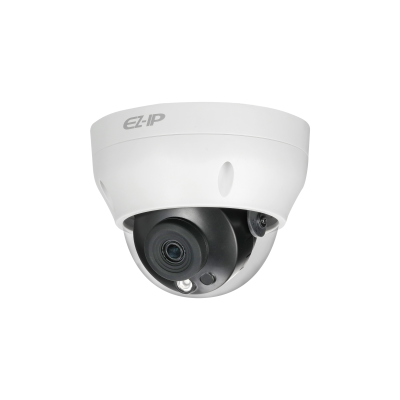

IPC-D2B40-ZS

4MP IR Mini-Dome Network Camera

> 1/3” 4Megapixel progressive CMOS
> H.265+ & H.265 dual-stream encoding
> 20fps@4M(2560×1440) &25/30fps@3M(2304×1296)
> DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> 2.8~12mm varifocal lens
> Max IR LEDs Length 30m
> Micro SD card memory, IP67, PoE

Описание

Camera
Image Sensor 1/3” 4Megapixel progresive CMOS
Effective Pixels 2560(H)x1440(V)
RAM/ROM 256MB/16MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1/3~1/100000s
Minimum Illumination 0.05Lux/F1.8( Color,1/3s,30IRE)

0.3Lux/F1.8( Color,1/30s,30IRE)

0Lux/F1.8(IR on)

S/N Ratio More than 50dB
IR Distance Distance up to 30m(98ft)
IR On/Off Control Auto/ Manual
IR LEDs 2
Lens
Lens Type Motorized
Mount Type Board-in
Focal Length 2.8mm~12mm
Max. Aperture F1.8
Angle of View H:97°~31°, V:54°~17°
Focus Control Fixed
Close Focus Distance 0.2m(0.66ft)
DORI Distance Lens Detect Observe Recognize Identify
W 66m(216.5ft) 26.4m(86.6ft) 13.2m(43.3ft) 6.6m(21.7ft)
T 200m(656.2ft) 80m(262.5ft) 40m(131.2ft) 20m(65.6ft)
PTZ
Pan/Tilt Range Pan:0° ~355° ;Tilt:0° ~75° ;Rotation:0° ~355°
Intelligence
Event Trigger Motion detection, Video tampering , Network disconnection , Scene change, IP address conflict, Illegal Access,Storage anomaly
Video
Compression H.265/H.264/H.264B/MJPEG(Sub Stream)
Smart Codec Support H.265+/H.264+
Streaming Capability 2 Streams
Resolution 4M(2560×1440)/3M(2304×1296)/1080P(1920×1080)/720P(1280×720)/VGA(640×480)/D1(704×576/704×480)/CIF(352×288/352×240)
Frame Rate Main Stream: 4M(1 ~ 20fps)
Sub Stream: D1(1 ~ 25/30fps)
Bit Rate Control CBR/VBR
Bit Rate H.264: 32K~6144K

H.265: 12K~ 6144K

Day/Night Auto(ICR) / Color / B/W
BLC Mode BLC / HLC / DWDR
White Balance Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control Auto/Manual
Noise Reduction 3D DNR
Motion Detetion Off / On (4 Zone, Rectangle)
Region of Interest Off / On (4 Zone)
Electronic Image Stabilization (EIS) N/A
Smart IR Support
Digital Zoom 16x
Flip 0°/90°/180°/270°
Mirror Off / On
Privacy Masking Off / On (4 Area, Rectangle)
Audio
Compression N/A
Network
Ethernet RJ-45 (10/100Base-T)
Protocol HTTP;HTTPS;TCP;ARP;RTSP;RTP;RTCP;UDP;SMTP;

FTP;DHCP;DNS;DDNS;IPV4/V6;QoS;UPnP;

NTP;Bonjour;Multicast;ICMP;IGMP;TLS;SSH

Streaming Method Unicast / Multicast
Max. User Access 10 Users/20 Users
Edge Storage NAS(Network Attached Storage)

Local PC for instant recording

Micro SD Card 128GB

Web Viewer IE, Chrome, Firefox, Safari
Management Software Smart PSS, DSS,DMSS
Smart Phone IOS, Android
Certifications
Certifications CE: (EN 60950:2000)

FCC: FCC Part 15 Subpart B

Interface
Video Interface N/A
Audio Interface N/A
RS485 N/A
Alarm N/A
Electrical
Power Supply DC12V, PoE (802.3af)(Class 0)
Power Consumption DC12V: 1.8W, 5.6W(IR On)

PoE: 2.1W, 6.5W(IR On)

Environmental
Operating Conditions -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Strorage Conditions -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Ingress Protection IP67
Vandal Resistance N/A
Construction
Casing Plastic
Dimensions Φ122mm × 98.1mm (4.8″ x3.86″)
Net Weight 0.381Kg (0.84lb)
Gross Weight 0.562Kg (1.24lb)
