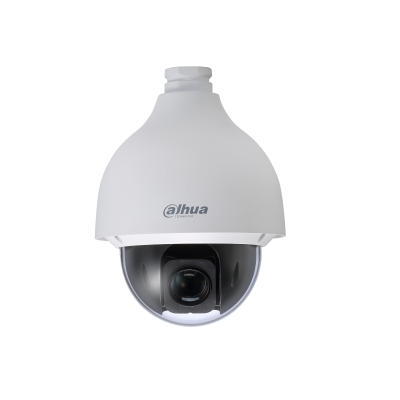

SD50430I-HC

4MP 30x PTZ HDCVI Camera

> 1/3” 4Megapixel CMOS
> Powerful 30x optical zoom
> 120dB true WDR, 3D DNR
> Max. 25/30fps@4M/1080P, 25/30/50/60fps@720P
> IP67, IK10

Описание

Camera
Image Sensor 1/3” CMOS
Effective Pixels 2592(H) x 1520(V), 4 Megapixels
Scanning System Progressive
Electronic Shutter Speed PAL: 1/3s~1/30,000s

NTSC: 1/4s~1/30,000s

Minimum Illumination Color: 0.05Lux@F1.6; B/W: 0.005Lux@F1.6
S/N Ratio More than 55dB
IR Distance N/A
IR On/Off Control N/A
IR LEDs N/A
Lens
Focal Length 4.5mm~135mm
Max. Aperture F1.6 ~ F4.4
Angle of View H: 60° ~ 2.2°
Optical Zoom 30x
Focus Control Auto/Manual
Close Focus Distance 100mm~ 1000mm
DORI Distance
Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.
Detect Observe Recognize Identify
2700m(8858ft) 1080m(3543ft) 540m(1772ft) 270m(886ft)
PTZ
Pan/Tilt Range Pan: 0° ~ 360° endless; Tilt: 0° ~ 90°,auto flip 180°
Manual Control Speed Pan: 0.1° ~350° /s; Tilt: 0.1° ~250° /s
Preset Speed Pan: 500° /s; Tilt: 500° /s
Presets 300
PTZ Mode 5 Pattern, 8 Tour, Auto Pan ,Auto Scan
Speed Setup Human-oriented focal Length/ speed adaptation
Power up Action Auto restore to previous PTZ and lens status after power failure
Idle Motion Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period
Protocol DH-SD, Pelco-P/D (Auto recognition)
Video
Resolution 4M(2592×1520) / 1080P(1920×1080) / 720P(1280×720)
Frame Rate 25/30fps@4M/1080P, 25/30/50/60fps@720P
Video Output 1-channel BNC high definition video output/ CVBS standard definition video output (switchable)
Day/Night Auto(ICR) / Color / B/W
OSD Menu Support
Backlight Compensation BLC / HLC / WDR (120dB)
White Balance Auto,ATW,Indoor,Outdoor,Manual
Gain Control Auto / Manual
Noise Reduction Ultra DNR (2D/3D)
Digital Zoom 16x
Flip 180°
Privacy Masking Up to 24 areas
Certifications
Certifications CE: EN55032/EN55024/EN50130-4

FCC: Part15 subpartB,ANSI C63.4- 2014

UL: UL60950-1+CAN/CSA C22.2,No.60950-1

Interface
Video Interface 1
Audio Interface 1 channel in
RS485 1
Alarm I/O 2/1
Electrical
Power Supply AC24V/1.5A(±10%)
Power Consumption 13W,23W (Heater on)
Environmental
Operating Conditions -40°C ~ 60°C (-40°F ~ +140°F) / Less than 95% RH
Ingress Protection IP67
Vandal Resistance IK10
Construction
Casing Metal
Dimensions Φ186(mm) x 253(mm)
Net Weight 2.5kg(5.51lb)
Gross Weight 4.5kg(9.92lb)
